Das Spiel Snake auf einer 24x16 LED Matrix von Sure electronics

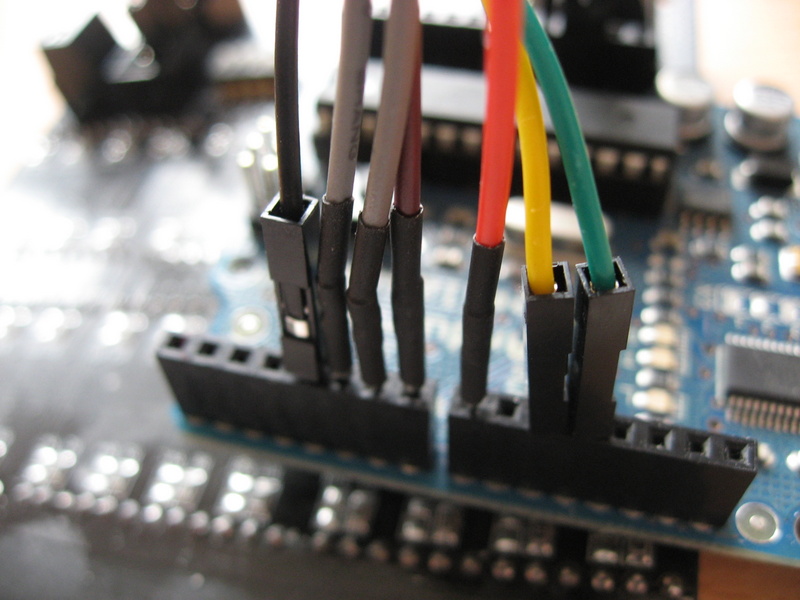

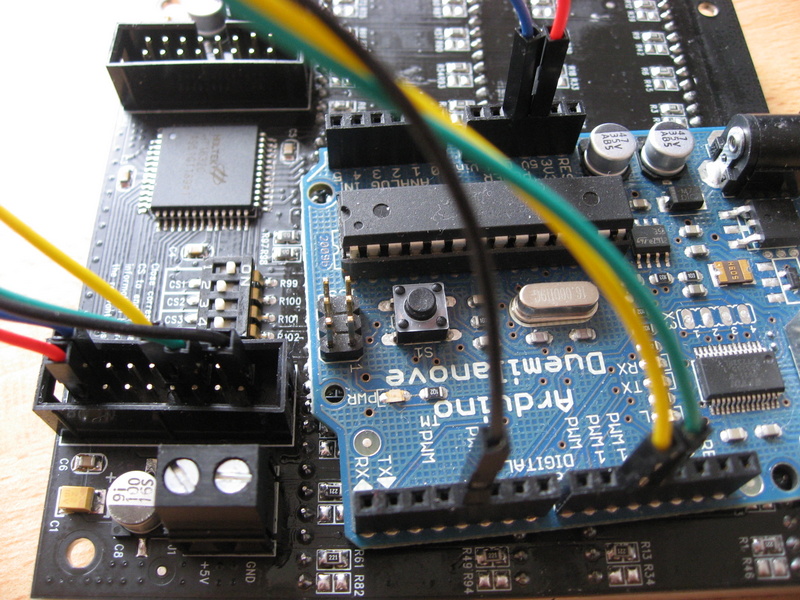

Bilder

Sourcecode

 // ********************** // Sure Matrix 24x16 // **********************

include <TimerOne.h>
include <Bounce.h>
include "MatrixDisplay.h"
include "DisplayToolbox.h"
// Macro to make it the initDisplay function a little easier to understand

define setMaster(dispNum, CSPin) initDisplay(dispNum,CSPin,true)
define setSlave(dispNum, CSPin) initDisplay(dispNum,CSPin,false)
// 1 = Number of displays // Data = 6 // WR == 7 // True. Do you want a shadow buffer? (A scratch pad)

// Init Matrix MatrixDisplay disp(1, 6, 7, false); // Pass a copy of the display into the toolbox DisplayToolbox toolbox(&disp);

define COLS 24
define ROWS 16
define MATRIX COLS * ROWS
byte matrix[MATRIX]; uint16_t snake[MATRIX]; int snakehead = 0; int oldsnakehead = 0; int startingpoint = 150; int direction = 1; boolean buttonPressed = false;

int applecaught = 0; int apple = -1; int applecount = 0; int blinkApple = 1; unsigned long lastAppleMillis = 0; int blinkSpeed = 100;

int button1 = 9; // Left int button2 = 10; // Up int button3 = 11; // Down int button4 = 8; // Right

int moveSpeed = 80; unsigned long lastMillis = 0;

Bounce bouncer1 = Bounce(button1, 10); Bounce bouncer2 = Bounce(button2, 10); Bounce bouncer3 = Bounce(button3, 10); Bounce bouncer4 = Bounce(button4, 10); int button1value = LOW; int button2value = LOW; int button3value = LOW; int button4value = LOW;

// initialization void setup() {

 randomSeed(analogRead(5));
 // buttons to input
 pinMode(button1, INPUT);
 pinMode(button2, INPUT);
 pinMode(button3, INPUT);
 pinMode(button4, INPUT);
 // Enable internal pullup resistors
 digitalWrite(button1, HIGH);
 digitalWrite(button2, HIGH);
 digitalWrite(button3, HIGH);
 digitalWrite(button4, HIGH);
 // Timer1 controls output on displays
 Timer1.initialize(20000);
 Timer1.attachInterrupt(outputDisplay);
 buttonPressed = false;
 // Prepare display
 disp.setMaster(0,4);
 resetSnake();
}

// call by timer1 void outputDisplay() {

 for(int i=0; i<COLS; i++)
   for(int j=0; j<ROWS; j++)
   {
     int value = matrix[i * ROWS + j];
     if ((i * ROWS + j) == apple)
     {
       if (millis() - lastAppleMillis >= blinkSpeed)
       {
         blinkApple = !blinkApple;
         lastAppleMillis = millis();
       }
       value = blinkApple;
     }
     toolbox.setPixel(i, j, value);
   }
 disp.syncDisplays();
}

// Create empty snake void resetSnake() {

 for(int i=0; i<MATRIX; i++)
 {
   snake[i] = -1;
 }
 clearMatrix();
 // Add starting dot
 matrix[startingpoint] = 1;
 snakehead = startingpoint;
 snake[0] = snakehead;
 generateApple();
 matrix[apple] = 1;
 direction = 1;
 applecount = 0;
}

void moveSnake() {

 if (millis() - lastMillis >= moveSpeed)
 {
   oldsnakehead = snakehead;
   switch(direction) {
   case 0:
     // up
     if ((snakehead - ROWS) < 0)
       snakehead += (ROWS * (COLS - 1));
     else
       snakehead -= ROWS;
     break;
   case 1:
     // right
     if ((snakehead - (snakehead % ROWS)) == (((snakehead+1) - (snakehead+1) % ROWS)))
       snakehead += 1;
     else
       snakehead = snakehead - (ROWS - 1); // to start of row
     break;
   case 2:
     // down
     if ((snakehead + ROWS) > ((ROWS * COLS - 1)))
       snakehead = snakehead % ROWS;
     else
       snakehead += ROWS;
     break;
   case 3:
     // left
     if (snakehead == 0)
       // exception for topleft, pixel 0
       snakehead += (ROWS - 1);
     else
     {
       if ((snakehead - (snakehead % ROWS)) == (((snakehead-1) - (snakehead-1) % ROWS)))
         snakehead -= 1;
       else
         snakehead += (ROWS - 1); // end of row
     }
     break;
   default:
     // wtf?
     break;
   }
   // Check if we have the apple
   if (snakehead == apple)
   {
     // Got it!
     applecaught = 1;
   }
   // check if we hit the snake
   for (int i=1; i<MATRIX; i++)
   {
     if (snake[i] == snakehead)
       endGame();
   }
   // Add new dot to end of snake
   for(int i=MATRIX-1; i>0; i--)
   {
     snake[i] = snake[i-1];
   }
   snake[0]=snakehead;
   for(int n=0; n<MATRIX-1; n++)
   {
     if (snake[n] == -1)
     {
       if (applecaught == 0)
         snake[n-1] = -1; // undo last, we are moving on
       break;
     }
   }
   if (applecaught == 1)
   {
     generateApple();
     applecaught = 0;
     applecount++;
   }
   updateMatrix();
   lastMillis = millis();
 }
}

// Update snake in matrix void updateMatrix() {

 clearMatrix();
 for (int i=1; i<MATRIX; i++) {
   if (snake[i] == -1)
     break;
   matrix[snake[i]] = 1;
 }
 matrix[snakehead] = 1;
 matrix[apple] = 1;
}

// Clear matrix (all LEDs off) void clearMatrix() {

 for (int i=0; i<MATRIX; i++)  {
   matrix[i] = 0;
 }
}

// Generate random positon for apple void generateApple() {

 apple = random(MATRIX);
 for (int n=0; n<MATRIX; n++)
 {
   if (snake[n] == apple)
     generateApple();
 }
}

// Game over void endGame() {

 delay(500);
 apple = -1;
 for (int i=0; i<COLS; i++)
 {
   for (int n=0; n<ROWS; n++)
     matrix[n + (i * ROWS)] = 1;
   delay(100);
 }
 delay(1000);
 resetSnake();
}

void loop() {

 bouncer1.update();
 bouncer2.update();
 bouncer3.update();
 bouncer4.update();
 if (bouncer1.read() == LOW) {
   if (button1value == HIGH) {
     buttonPressed = true;
     if (direction != 1)
       direction = 3; //LEFT
   }
 }
 button1value = bouncer1.read();
 if (bouncer2.read() == LOW) {
   if (button2value == HIGH) {
     buttonPressed = true;
     if (direction != 2)
       direction = 0; // UP
   }
 }
 button2value = bouncer2.read();
 if (bouncer3.read() == LOW) {
   if (button3value == HIGH) {
     buttonPressed = true;
     if (direction != 0)
       direction = 2; // DOWN
   }
 }
 button3value = bouncer3.read();
 if (bouncer4.read() == LOW) {
   if (button4value == HIGH) {
     buttonPressed = true;
     if (direction != 3)
       direction = 1; // RIGHT
   }
 }
 button4value = bouncer4.read();
 moveSnake();
}
